10G SFP+ AOC

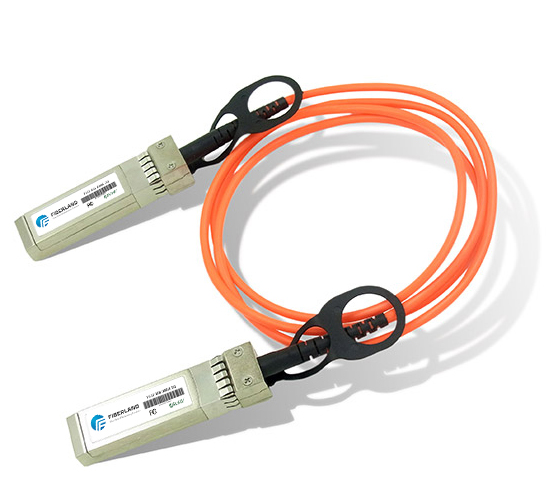

10G SFP+ TO 10G SFP+ AOC

Rate10GCommon selectable lengths1m / 1.5m / 2m / 3m / 5m / 7m / 10m / 15m / 20m / 30m / 50m / 70m / 100mWavelength850NMInterface-
Fiberland part number
FLD-SFP+AOC-X
Unit priceAsk Our Manager

Key Specifications

Select a specification to see how it affects model selection.

View complete table
Form TypeSFP+

Check this recorded value against the target device and project requirements before quotation approval.

Technical Specifications

Filter the product record by the information needed for engineering or purchasing review.

14 specifications shown
Fiberland Part NumberFLD-SFP+AOC-XVendor NameFIBERLAND
Data Rate10GWavelength850NM
Common selectable lengths1m / 1.5m / 2m / 3m / 5m / 7m / 10m / 15m / 20m / 30m / 50m / 70m / 100mForm TypeSFP+
Optical Interface-DDM SupportYES
Commercial Temp.0~70℃Industrial Temp.-
Compatible BrandsCisco,Huawei,Nvidia...200+ brandsComplianceCE,FCC,ROHS,REACH
Warranty3 YearsModeMM

Product Compatibility Mapping

Cross-reference the original manufacturer part number with the corresponding Fiberland part number before confirming the target device and firmware.

Search Full Compatibility Database
Verified cross-references14 manufacturer part numbersAcross 2 brands
Showing 8 of 14 verified matches

Swipe horizontally to view every field.

Original part numberBrandFiberland part numberProduct description
AOC-S-S-10G-3MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 3 m.
AOC-S-S-10G-5MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 5 m.
AOC-S-S-10G-7MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 7 m.
AOC-S-S-10G-10MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 10 m.
AOC-S-S-10G-15MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 15 m.
AOC-S-S-10G-20MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 20 m.
AOC-S-S-10G-25MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 25 m.
AOC-S-S-10G-30MARISTAFLD-SFP+AOC-X10G SFP+ to SFP+ active optical cable, 30 m.

A part-number cross-reference is a model-selection starting point, not a blanket device guarantee. Final fit depends on the exact device, firmware or OS, target port and requested coding profile.
