40G,100G Transceivers

Fiberland is a leading manufacturer of Cisco compatible QSFP+ SR ,QSFP-40G-SR4 transceiver. Based on the full stock of QSFP-40G-SR4,we are able to arrange your shipping within 2 business days for quantity under 300 pcs. We 100% guarantee that the QSFP-40G-SR4 transceiver which we produced is compatible with original Cisco QSFP+ SR module.TheQSFP-40G-SR4 transceiver comes with a 3 years warranty and lifetime maintenance. The Fiberland QSFP-40G-SR4 is a level first and Class 1 laser product.It's fully comply with the multi sourcing agreement.All the QSFP-40G-SR4 will be fully tested with

Vendor Name

Fiberland

Form Type

QSFP+

Data Rate

40G

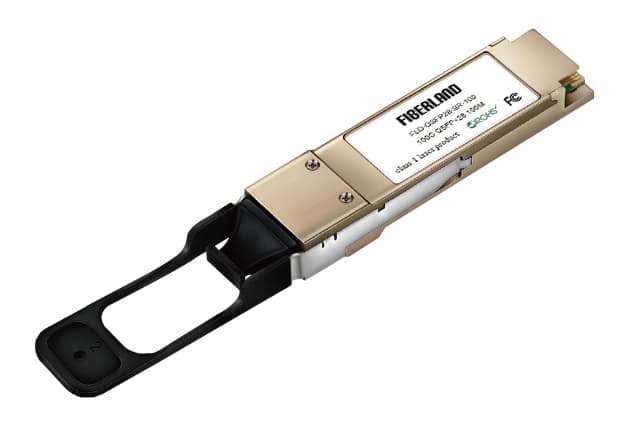

100G data rate/100G OTU4 Support line rates from 103.125 Gbps to 111.81 Gbps Up to 100m based on MMF ,80km on SMF Digital Diagnostics Monitoring Interface Duplex LC optical receptacle No external reference clock Electrically hot-pluggable Compliant with QSFP28 MSA with LC connector Power dissipation < 3.5 W Compliant with CE,FCC,Rohs,REACH

Vendor Name

Fiberland

Form Type

QSFP28

Data Rate

100Gbps

Compliant with 100GBASE CFP4 Support line rates from 103.125 Gbps to 111.81 Gbps Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF Digital Diagnostics Monitoring Interface Duplex LC optical receptacle No external reference clock Single 3.3 V power supply Case operating temperature range:0&deg;C to 70&deg;C Power dissipation < 6W Compliant with CE,FCC,Rohs,REACH

Vendor Name

Fiberland

Form Type

CFP4

Data Rate

100Gbps

Compliant with 100GBASE CFP2 Support line rates from 103.125 Gbps to 111.81 Gbps Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF Digital Diagnostics Monitoring Interface Duplex LC optical receptacle No external reference clock Single 3.3 V power supply Case operating temperature range:0&deg;C to 70&deg;C Power dissipation < 9W Compliant with CE,FCC,Rohs,REACH

Vendor Name

Fiberland

Form Type

CFP2

Data Rate

100Gbps

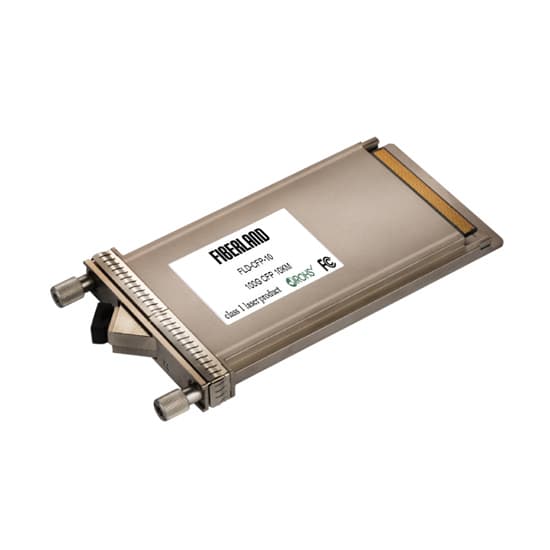

Compliant with 100GBASE CFP Support line rates from 103.125 Gbps to 111.81 Gbps Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface Duplex LC optical receptacle MDIO Interface for module management Single 3.3 V power supply Case operating temperature range:0&deg;C to 70&deg;C Power dissipation < 12W Compliant with CE,FCC,Rohs,REACH

Vendor Name

Fiberland

Form Type

CFP

Data Rate

100Gbps

40G data rate with 4 CWDM lanes Mux/Demux design Up to 11.1Gbps Data rate per wavelength From 150m to 80km transmission on MMF/SMF Electrically hot-pluggable Digital Diagnostics Monitoring Interface Compliant with QSFP+ MSA with LC connector Case operating temperature range:0&deg;C to 70&deg;C Power dissipation < 3.5 W Compliant with CE,FCC,Rohs,REACH

Vendor Name

Fiberland

Form Type

QSFP+

Data Rate

40Gbps
